Öhlins Road & Track G8X Coilover Kit – BMW M3 / M4 (G80/G82)

In Stock: Ships in 1-2 business days
Available to Order: Ships based on manufacturer availability

RWD Part No: BMS MW00S1
xDrive Part No: BMS MW10S1

Looking to completely transform the handling of your G8X without sacrificing its ability to be daily driven?

The Öhlins Road & Track Coilover Kit brings motorsport-derived suspension technology to the BMW G8X platform while maintaining the ride quality needed for real-world street driving.

At the heart of the system is Öhlins' Dual Flow Valve (DFV) technology, designed to provide exceptional response, traction, and control while allowing the suspension to remain compliant over road imperfections.

Whether you're commuting during the week, attacking back roads, or heading to the track, the Road & Track system gives you the ability to adjust the suspension around how you actually use your car.

Track-capable performance.
Street-friendly ride quality.
Legendary Öhlins suspension technology.

⸻

Why the Öhlins Road & Track Kit

The Öhlins Road & Track system is designed for drivers who want a significant improvement in chassis performance without turning their G8X into a dedicated track car.

Öhlins' DFV technology allows the dampers to react quickly to both major and minor road imperfections, helping the tires maintain contact with the road surface while improving chassis control.

Each damper features a 25-click adjustment range controlling compression and rebound characteristics. Turn the adjustment toward a firmer setting for increased control on track, then dial the suspension back for a more compliant setup on the street.

The dampers also feature separate spring preload and damper length adjustment, allowing ride height to be changed without relying solely on spring preload.

Sharper response.
More predictable chassis control.
Adjustable for both street and track use.

⸻

Dual Flow Valve Technology

Öhlins' Dual Flow Valve technology is what separates the Road & Track system from a conventional coilover setup.

DFV allows the dampers to react quickly to changes in the road surface during both compression and rebound. This helps the suspension absorb bumps and imperfections while maintaining the chassis control needed during aggressive driving.

• Öhlins Dual Flow Valve (DFV) Technology
• 1-Way 25-Click Compression and Rebound Adjustment
• Low- and High-Speed Compression and Rebound Damping
• Improved Bump Absorption
• Increased Tire Contact and Traction
• Adjustable for Street or Track Use

The result is a suspension system that provides greater control when you're pushing the car while remaining compliant enough for everyday driving.

⸻

Height Adjustment

The Öhlins Road & Track system provides individual ride-height adjustment front and rear, allowing you to dial in both stance and suspension setup.

• Front Lowering: Approximately 0.2"–1.2" (5–30 mm)
• Rear Lowering: Approximately 0.2"–1.4" (5–35 mm)

Separate spring preload and damper length adjustment allow the suspension to be properly set up while adjusting the vehicle's ride height.

Unlike a fixed lowering spring, the final ride height can be individually adjusted within the available range to achieve the stance and fitment you're looking for.

⸻

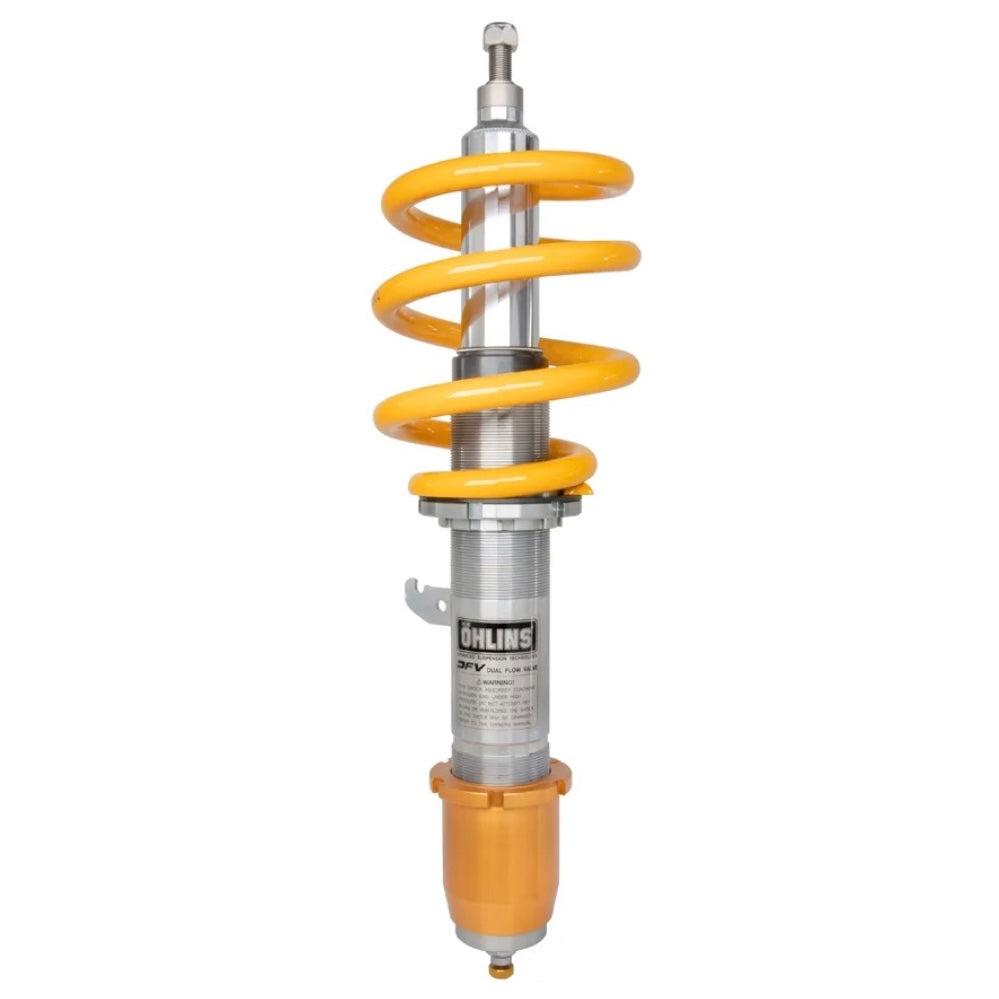

Front Suspension

The front suspension utilizes an Öhlins McPherson strut design with monotube upside-down damper technology.

• McPherson Strut Design
• Monotube Upside-Down Technology
• Dual Flow Valve Technology
• 25-Click Damping Adjustment
• Spring Preload Adjustment
• Separate Damper Length Adjustment
• Approximately 0.2"–1.2" (5–30 mm) Lowering Range
• 100 N/mm Spring Rate
• Uses Original BMW Top Mounts

The inverted monotube design provides the rigidity and precise damper response expected from a performance-focused Öhlins suspension system.

⸻

Rear Suspension

The rear utilizes an aluminum monotube shock absorber designed to complement the front Road & Track dampers.

• Aluminum Monotube Shock Absorber
• Dual Flow Valve Technology
• 25-Click Damping Adjustment
• Spring Preload Adjustment
• Separate Damper Length Adjustment
• Approximately 0.2"–1.4" (5–35 mm) Lowering Range
• 190 N/mm Spring Rate
• Uses Original BMW Top Mounts

Together, the front and rear dampers provide a balanced suspension package engineered around the characteristics of the G8X chassis.

⸻

Installation Overview

• Factory front and rear suspension components are replaced with Öhlins Road & Track components
• Original BMW top mounts are retained
• Front and rear ride height can be individually adjusted
• Spring preload can be adjusted independently
• Damper length can be adjusted independently
• 25-click damping adjustment allows suspension characteristics to be fine-tuned
• Wheel alignment required after installation
• Professional installation recommended

⸻

Fitment

BMW G8X Platform:

• G80 M3
• G80 M3 Competition
• G81 M3 Touring
• G82 M4
• G82 M4 Competition
• G83 M4 Convertible

RWD and xDrive configurations are available. Select the correct drivetrain option when ordering.

RWD: BMS MW00S1
xDrive: BMS MW10S1

⸻

Construction

• Öhlins Dual Flow Valve (DFV) Technology
• Monotube Damper Construction
• Upside-Down Front Strut Design
• Aluminum Rear Shock Absorbers
• 1-Way 25-Click Compression and Rebound Adjustment
• Independent Spring Preload Adjustment
• Separate Damper Length Adjustment
• Rebuildable Dampers for Service and Custom Tuning
• Corrosion Salt Spray Tested to ISO 9227
• Approximately 10 kg Lighter Than the Standard Suspension
• TÜV Approved

⸻

What's Included

• Öhlins Front Road & Track Coilover Assemblies
• Öhlins Rear Road & Track Dampers
• Front Springs
• Rear Springs
• Front and Rear Height Adjustment Components
• Required Installation Hardware
• Adjustment Tools
• Installation Documentation

Factory BMW top mounts are reused.

⸻

Warranty

Öhlins Road & Track suspension systems are backed by a 2-year manufacturer's warranty.

Öhlins dampers are also rebuildable, allowing them to be serviced and providing the ability for custom damper tuning when required.

⸻

Automaz Approved

The Öhlins Road & Track system is the coilover setup I personally run on my G82 M4. It gives me the balance I want between sharper handling, adjustability, and everyday street comfort.

On my personal setup, I pair the Öhlins coilovers with Suspension Secrets suspension upgrades to further improve the responsiveness and handling of the chassis.

Street driven.
Track capable.
Personally tested on the Automaz G82.
